Our engineering team will design the optimal quartz heating solution for your process
Customized Solution
High-Performance Infrared Heating Solutions for Industrial Processes
Fast Response. Precise Control. High Energy Efficiency

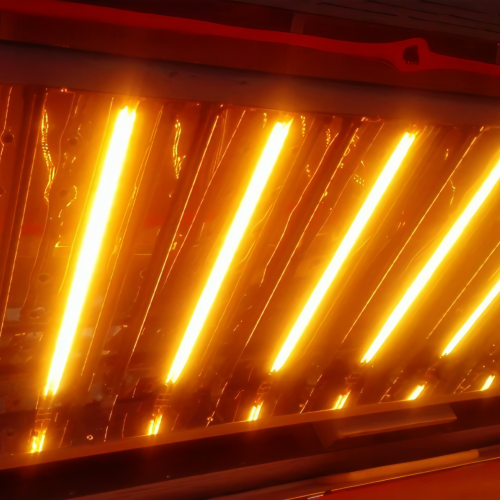

Rapid, high-intensity infrared (IR) heat for industrial applications requiring fast response, precise temperature control, and efficient energy transfer.

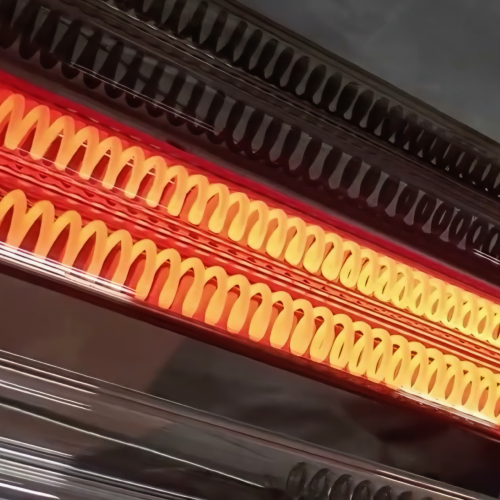

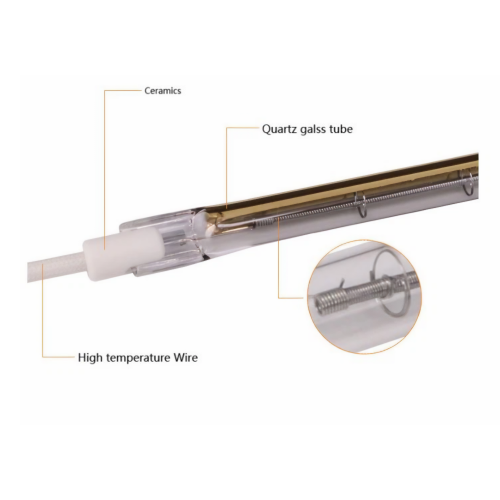

These elements typically consist of a resistance heating wire enclosed within a quartz glass tube, where electrical energy is converted into heat and emitted primarily as Infrared radiation.

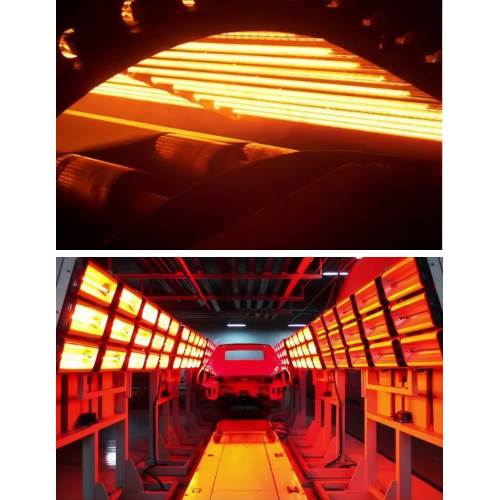

Quartz heaters are widely used in industrial processes that require direct, non-contact heating, making them ideal for applications such as drying, curing, thermoforming, and surface heating.
At Isratherm Industrial Solutions, we supply quartz heating elements from leading global manufacturers, offering both standard configurations and fully customized solutions for industrial process optimization
Quartz elements reach operating temperature within seconds, significantly reducing startup time.
Low thermal mass enables fast shutdown and process control.
Direct radiant heating reduces energy losses.
Ideal for processes requiring dynamic temperature adjustments.
Infrared radiation ensures consistent heating across surfaces.
High power density allows space-saving installation.

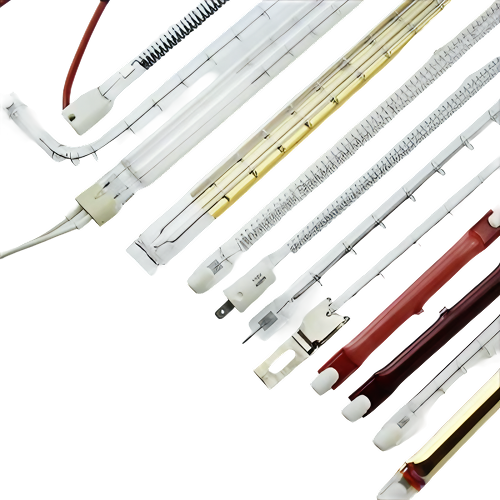

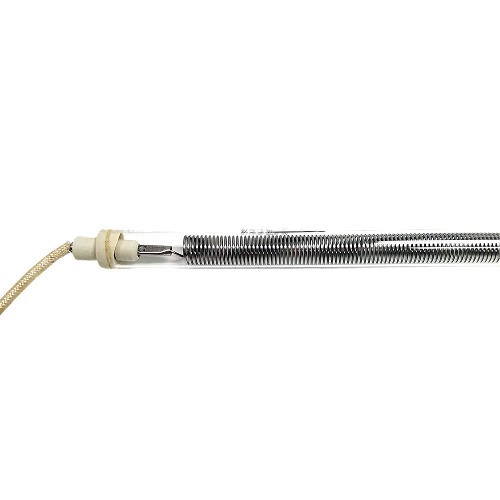

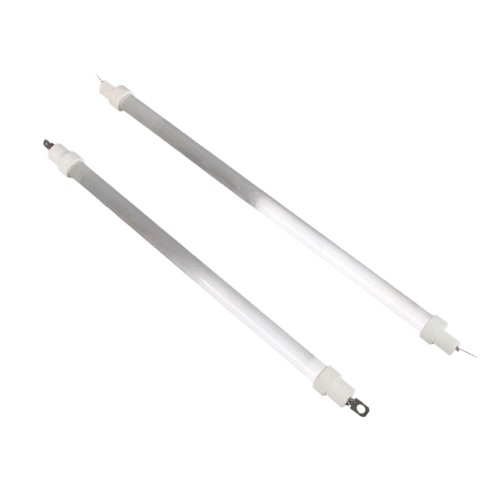

Quartz Tube Heaters
Transparent or opaque quartz tubes●
High radiant output●

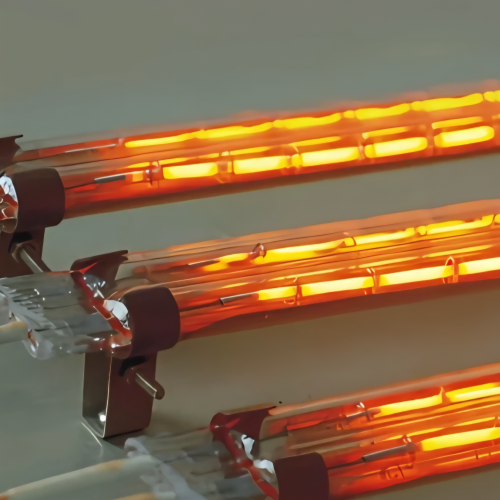

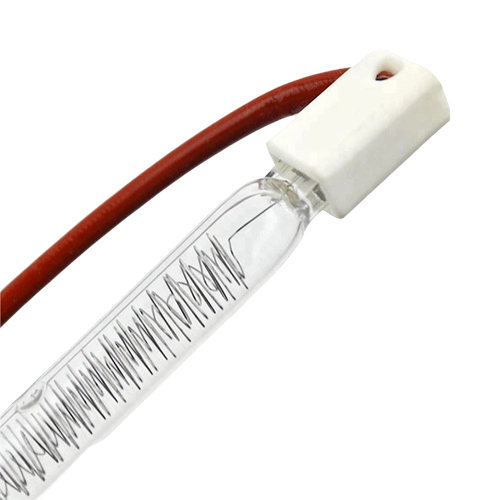

Quartz Infrared Lamps
Short-wave or medium-wave IR●
High intensity and focused heating●

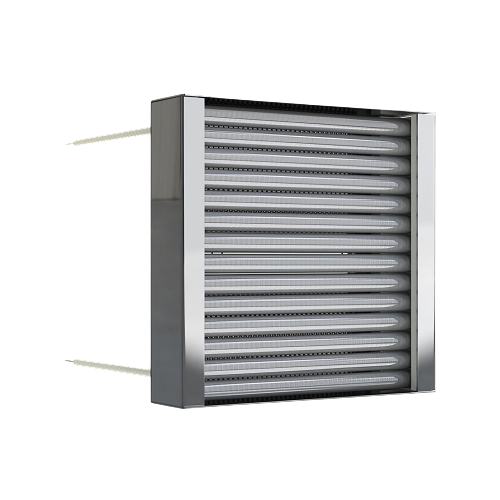

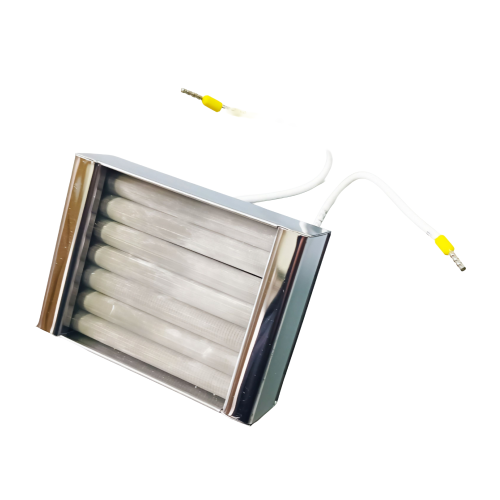

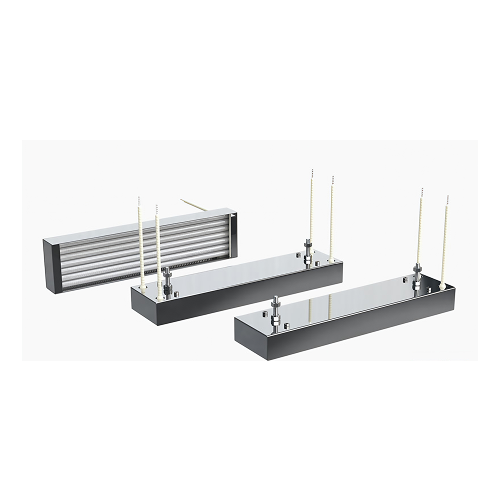

Cassette Quartz Heaters
Modular design●
Easy replacement and maintenance●

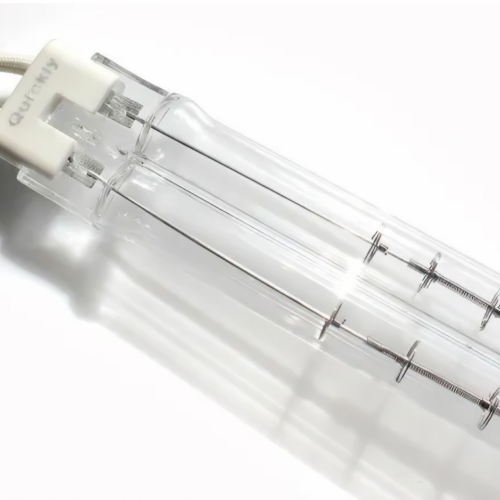

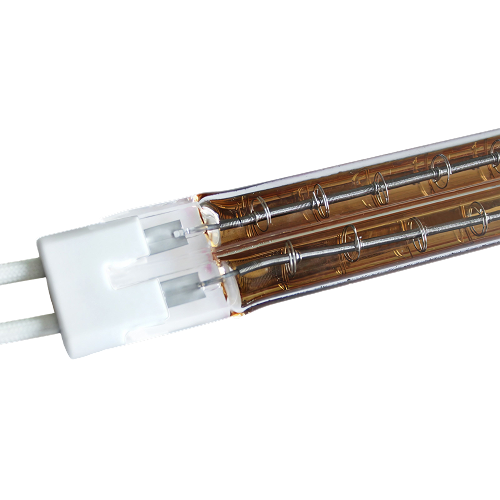

Twin-Tube / Double Tube Elements
Higher power output●
Improved heat distribution●
Custom Quartz Assemblies
Designed for specific process requirements
Quartz glass is selected due to:
High temperature resistance●
Excellent infrared transmission●
Thermal shock resistance
Heaters operate based on radiant Infrared heating:
Unlike conventional convection heating, quartz elements:
Transfer heat directly to the product●
Minimize heat loss to surrounding air●
Enable precise and localized heating●
Quartz heating operates in the infrared spectrum, typically in the range of ~1.5 to 8 microns, allowing efficient energy transfer to materials.
Target Material Absorption
Different materials absorb infrared energy differently.
Wavelength Selection
Short, medium, or long-wave IR must match application.
Distance to Target
Critical for heating efficiency and uniformity.
Watt Density
Must be optimized to prevent overheating.
Reflector Design
Improves energy direction and efficiency.
Process Control
PID or SCR systems for precise control
Quartz heating elements are known for:
Their low thermal inertia makes them ideal for intermittent or cyclic processes, where frequent on/off operation is required.
At Isratherm, we provide:
Custom power and voltage●
Tube types (clear/opaque)●
Wavelength optimization●
Reflector integration●
Multi-zone heating systems●
Complete heating modules
An infrared heating element using a quartz tube to emit radiant heat.
Fast response and high efficiency.
Plastics, packaging, food, electronics, and more.
Element temperatures up to ~1000°C+ depending on design.
Yes, due to direct radiant heating.
Yes, widely adapted to specific processes.
